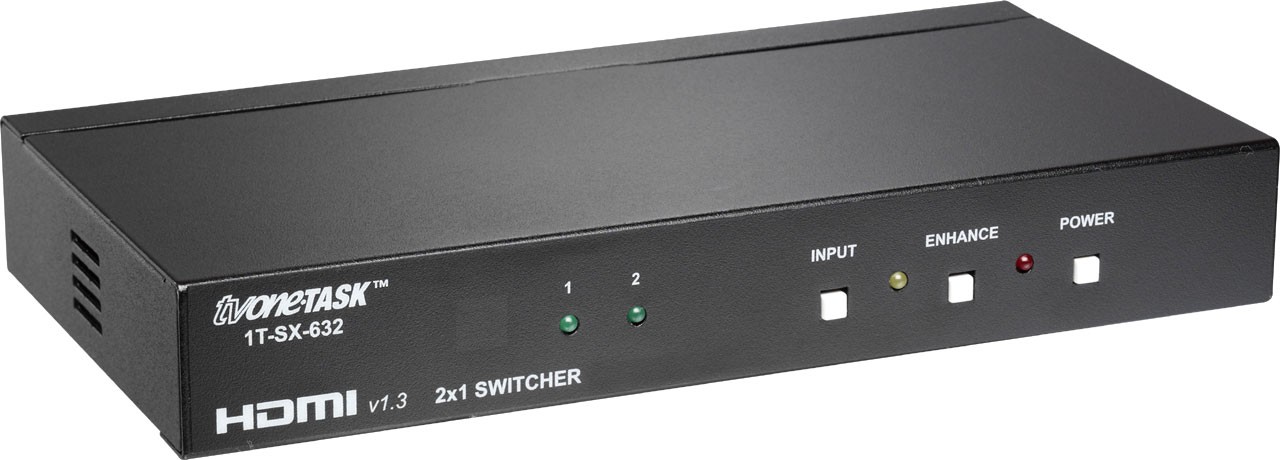

1T-SX-632 HDMI Routing Switcher is Version 1.3 compliant. The 1T-SX-632 switches between two inputs. The unit maintains the signal components present within the encoded signal and allow the user to easily select program material without plugging and unplugging cables. Embedded audio, including Dolby® Digital TrueHD and DTS-HD is supported.
HDTV resolutions of 480p, 576p, 720p, 1080i and 1080p are supported, plus SDTV resolutions of 480i and 576i and PC resolutions up to 1920x1200. The units are fully DVI compatible. The switcher can be controlled via the front panel or with the included Infrared Remote Control. RS-232 control is provided as a standard feature.
Provisions are made for securing locking type HDMI cables. The unit is housed in rugged metal cases and optional Single/Dual Rackmount Kits are available. It is 5VDC powered and a Power Adapter is included. The DC power connector is a locking type for security. For best performance at long distances, premium grade cables are recommended.
Artikelnummer 8624-0100-01 Administrator tvONE Lieferzeit 2-14 Tage
- Switches two HDMI Sources
- Supports HDTV resolutions up to 1080p
- Supports SDTV 480i, 576i resolutions
- Supports PC resolutions up to 1920x1200
- HDMI v1.3, HDCP v1.1, DVI v1.0 Compliant
- Built in Enhancer for long cable runs
- Supports 10/12 bit Color Depth Displays
- Supports DDWG Standard for HDMI Monitors
- Supports embedded audio, including Dolby® Digital TrueHD and DTS-HD

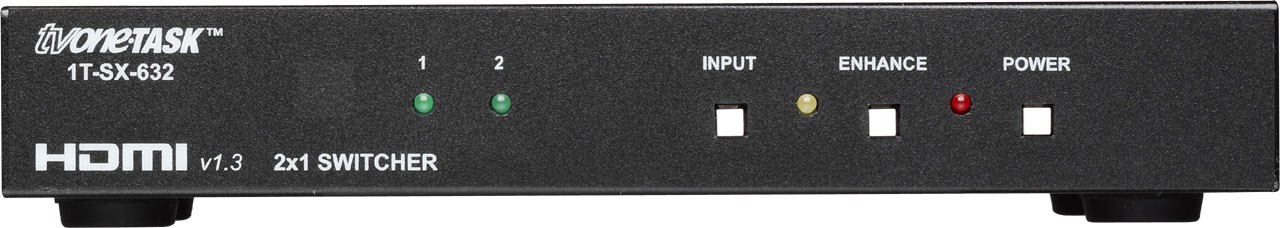

- Controllable via Front Panel or Included IR Remote
- RS-232 Control Port Provided
- Single/Dual Rackmount Kit optional
- Locking DC Power Connector for Security

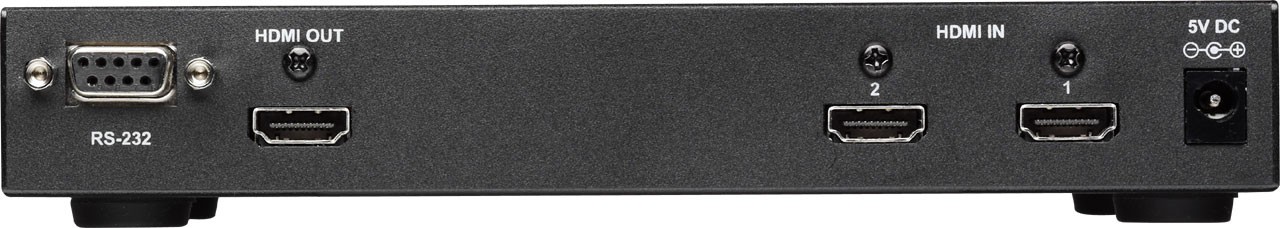

HDCP compliant Ja Steuerung Bedienfeld, RS-232, IR
HDMI IN 2x Audio IN embedded Audio
HDMI OUT 1x Audio OUT embedded Audio
Datenblatt tvone_1t-sx-644_1t-sx-632_1t-sx-634_vd-eu.pdf (293.78 KB )
