tvONE

A2-7342

Audio Format Converter

Mehr Ansichten

tvONE
A2-7342
Audio Format Converter
Bitte loggen Sie sich ein um Ihren Preis zu sehen
Beschreibung

Details

A2-7300 Series units are high quality audio format converters designed primarily to provide maximum format flexibility for the C2-8160 and C2-8260 Video Processor's audio inputs and outputs. The C2-8160 and C2-8260 provides AES3-id audio I/O via one HD-44 Connectors. Any of the A2-7300 models can connect to these connectors to bring the AES3-id signals out to BNC connectors or to change the audio format completely. All of the AES audio channels can be synchronized to a DARS reference when connected to the C2-8160 and C2-8260 via any of the A2-7300 units. Additionally, the A2-7300 units may be used in conjunction with one another, without the C2-8160 or C2-8260, to provide bi-directional analog/digital or AES3/AES3-id conversion.

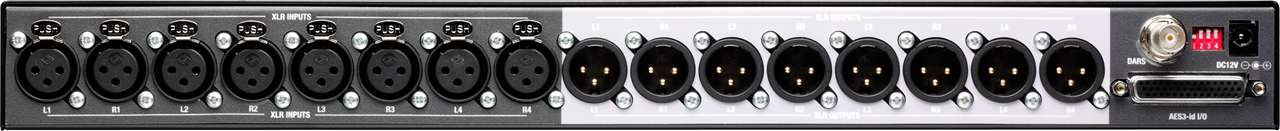

A2-7342 provides an HD-44 to 8 Analog Stereo (4-in/4-out) on XLR’s and a DARS reference input on a BNC connector. This unit contains four high quality stereo analog to AES3-id converters, plus four high quality AES3-id to stereo analog. The audio sample rate is user adjustable in stand alone mode using DIP switches or selected from the C2-8160 or C2-8260 menu when connected.

Zusatzinformation

Zusatzinformation

Allgemein

Hersteller tvONE
Artikelnummer 8624-0140-01
Lieferzeit 2-14 Tage

Eigenschaften

Eigenschaften DARS AES3-id input on a HD44 connector

Inputs

Audio IN 4x symmetrisch Stereo Audio

Outputs

Audio OUT 4x symmetrisch Stereo Audio
Downloads

Downloads

Datenblattpdftvone_a2-7300_vd-eu.pdf (642.56 KB )
LV-Textdoclv_tv_one_corio_modul_a2-7342.doc (19 KB )
