ICP-9401

Multi Window Processor

Mehr Ansichten

IDK
ICP-9401
Multi Window Processor
Bitte loggen Sie sich ein um Ihren Preis zu sehen
Beschreibung

Details

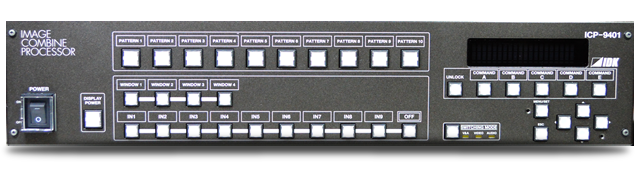

ICP-9401 is a Multi Window Processor combining up to 4 images into 1 display output image with any layout. This device can also be used as a seamless switcher with 9 inputs and 1 output using cut, dissolve and wipe transition (while not using multi window function).

The ICP-9401 has 5 digital (HDMI) and 4 analog inputs, to which video signals such as HDMI, DVI, Composite Video, S-Video, Analog RGB, Analog YPbPr can be niput. Input video signals can be converted up to WUXGA or 1080p and will be output as HDMI or DVI signals.

The ICP-9401 has 5 digital (HDMI) and 9 analog (RCA) audio inputs. Selected audio signals can be output as digital audio (HDMI) and analog audio (RCA).
Sound level of input and output signals can be set respectively. Gaps between video and audio can be compensated by Lip Sync function.

The ICP-9401 has been equipped with RS-232C (2 ports), LAN for external control. This product can control peripherals through RS-232C, LAN and CEC if external control commands are registered. Since External control commands have a delay function, this product can switch contact points after cooling displays. External control commands can be carried out through the front keys, RS-232C and LAN interfaces. Also thex can be used when input switching keys are operated or when the power is on.

Zusatzinformation

Zusatzinformation

Allgemein

Artikelnummer 8673-0001-01
Hersteller IDK
Lieferzeit 2-5 Tage

Eigenschaften

Eigenschaften
  • Three dimesional luminance/chrominance separation
  • Aspect ratio holding function
  • Picture adjusting function (brightness, contrast, display position, display size)
  • Seamless function
  • Image combination feature, preset feature of combination patterns (20 patterns)
  • Volume adjusting function (Volume of input and output ports can be set separately)
  • Selects pictures without switching audio
  • Last memory function
  • Anti-Snow function
  • Connection reset function
  • External control commands (32 commands)
  • Key lock function
PIP Ja
HDCP compliant Ja
Steuerung Bedienfeld, RS-232, IP

Inputs

VGA IN 4x
HDMI IN 5x
Audio IN 5x embedded Audio
9x analog Stereo Audio

Outputs

HDMI OUT 1x
Audio OUT 1x embedded Audio
1x analog Stereo Audio
Downloads

Downloads

Datenblattpdfc//icp-9401_vd-eu.pdf (415.47 KB )
LV-Textdocd//idk_icp-9401.doc (51.5 KB )
