The Matrox® Maevex 6150 quad 4K encoder appliance is the first in the world to deliver quad 4K input capture and encode, supporting at least four concurrent 4K streams and recordings—simultaneously. Delivering the full feature set of the Maevex 6100 quad encoder card, the Maevex 6150 comes in a convenient, rack-ready form factor with added I/O.
Coupled with Maevex PowerStream Plus software, the Maevex 6150 quad 4K enterprise encoder appliance delivers reliable industry-leading technology for flexible management of local or remote data, ensuring complete reach and control over the entire network.
The Matrox Maevex 6150 appliance is part of the Maevex 6100 Series, the next generation in Matrox's AV-over-IP portfolio offerings. Built on H.264, this plug-and-play solution fits seamlessly into existing infrastructures and interoperates with virtually any network device, ensuring high-density content distribution and system scalability. Flexible setup and management of all devices and features from one easy to use interface comes via complimentary Maevex PowerStream Plus software.
The Maevex 6150 quad 4K enterprise encoder is the first in the world to drive simultaneous quad 4K/UHD and Full HD capture, encode, stream, and record from a single stand-alone appliance. Integrating seamlessly with standard 1 Gigabit Ethernet networks, Maevex 6150 includes zero-latency pass-through for real-time output of audio/video content on up to four 4K displays.

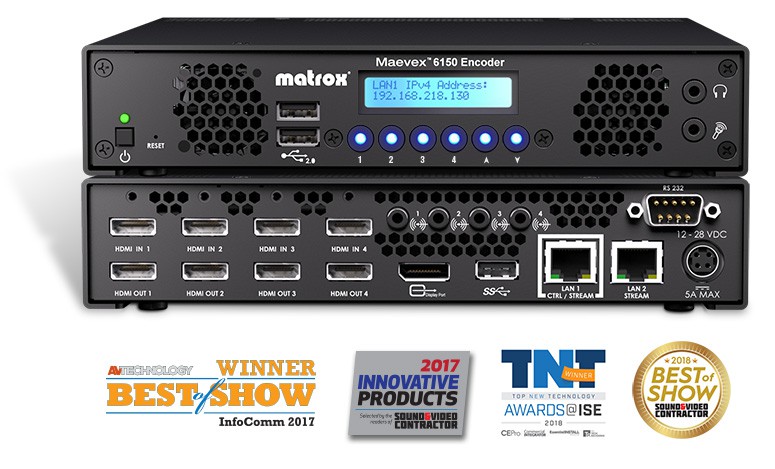

An on-device LCD display shows device IP and stream addresses, system information, and other urgent content, allowing for easy installation and troubleshooting issues directly on the device. Adding a separate monitor allows for previewing media and ensuring content appears exactly as intended before transmission.Six on-appliance buttons—to read and/or control the LCD display and start/stop streaming and recording functions—permit direct command execution in instances where software access is limited. Additional I/O for audio and USB connections ensures the functionality necessary for any installation.
Benefit from up to 4K/UHD 4:4:4 sub-sampling support plus H.264 capability for best-in-breed encoding. Maevex’s versatile PowerStream Plus software supports multi-protocol and multi-bitrate streaming, chroma sub-sampling management, multiple picture-in-picture (PIP) and quadrant composite options, and more. The multi-chroma sub-sampling feature delivers 4:4:4, 4:2:2, 4:2:0, and 4:0:0 options, to best balance bitrate and compression demands of different encoding environments and markets.
Our technology promises unprecedented quality, without necessarily needing a dedicated distribution network; we use existing 1 Gigabit Ethernet infrastructure and expand its capabilities to allow for many streams of any quality to be transmitted on a single cable.
The Maevex 6150 provides system independence and eliminates the need for additional equipment; simply place the appliance on the desktop, workstation, or rack, and it’s ready to use.
Support up to four channels of 4K real-time encode/stream from a single, stand-alone appliance housed in a 1U ½ width. It also allows for 1U dual-density and up to eight 4K streams and recordings from a single U of rack space.
The Maevex 6150 quad 4K appliance allows for simultaneous streaming, processing, and recording on all channels in multiple settings—all without sacrificing quality. This powerful appliance can feed on premises and cloud-based servers and systems to reach internet viewers, push many streams over LAN for local viewers, and record to local or network storage for later editing and viewing, concurrently. Maevex 6150 can also help deliver an unlimited number of video-on-demand streams through third-party technology like streaming media servers, content delivery networks (CDNs) and others.
H.264 technology meets almost every need and requirement for streaming and recording at excellent quality with minimal network bandwidth consumption—including at 4K. It also allows for delivery of multiple streams of almost every type of content over standard 1 Gigabit Ethernet networks; network streams or recordings can then be decoded using virtually any device. Customizable settings on each independent channel provide powerful scaling and deinterlacing to ensure only pristine graphics and video are encoded.
Complete Reach and Control
Discover devices, manage content, access hardware, and monitor all streams and recordings from any location on the network via robust Maevex PowerStream Plus software. Included with the purchase of Maevex hardware, PowerStream Plus renders both generations of Maevex products entirely monitorable, configurable, manageable, and updateable via an intuitive and easy-to-use application able to be installed on any network-connected computer.
Easily tailor operations by integrating PowerStream Plus features into existing applications or creating new software applications with the PowerStream Plus API —available for both Windows® and Linux®. A REST API is also available for more flexible and portable software development and more direct access to Maevex devices.
Artikelnummer 8696-0001-01 Administrator Matrox Lieferzeit 10 Tage
Eigenschaften Connectivity Form Factor Stand-alone appliance
Rack-mountable (1U dual-density)
Maximum Number of Cards per System System dependent Multi-Appliance Support Yes Supported Video Input Formats 4x HDMI (Type A) Performance Color Space Capture RGB and YUV 8- and 10-bit support
Color space conversion support
Chroma Sub-Sampling 4:4:4 (8-bit)
4:2:0 (8-bit and 10-bit)
4:0:0 (8-bit and 10-bit)
Video Input 4x HDMI (Type A) with audio support Video Output/Pass-Through 4x HDMI (Type A) with audio support Video Monitoring Output1 1x DisplayPort 1.1 Audio Input 4x HDMI digital LPCM two-channel stereo audio
4x 3.5 mm analog stereo audio
1x 3.5 mm stereo mic in
Audio Output 4x HDMI digital LPCM two-channel stereo audio
1x 3.5 mm headphones out
RS-232 1x for IP to RS-232 control USB Support 2x USB 2.0 (front)
1x USB SS 3.0 (back)
Mass storage support only
Maximum Capture Resolution 2x 3840x2160 @60Hz
2x 4096x2160 @60Hz2
4x 3840x2160 @30Hz
4x 4096x2160 @30Hz
Support for Custom Resolutions Project dependent; please contact Matrox for details Encoding Video Encoding Formats (Codecs) H.264/MPEG-4 Part 10 (AVC) Maximum Encoding Capability3 2x 3840x2160 @60Hz 4:2:0
2x 4096x2160 @60Hz 4:2:0
4x 3840x2160 @30Hz 4:2:0
4x 4096x2160 @30Hz 4:2:0
3x 1920x1200 @60Hz 4:4:4
3x 1920x1080 @60Hz 4:4:4
1x 3840x2160 @30Hz 4:4:4
Encoding Profiles Baseline (BP)
High 10 (Hi10P)
High 4:2:2 (Hi422P)
High 4:4:4 predictive profile separate plane (Hi444PP)
CAVLC 4:4:4 intra (44)
Encoding Level Up to 5.2 Bitrate Range 50 Kbps to 120 Mbps4
15 Mbps (default)
Rate Control CBR
Favor quality (optimize for desktop or latency)
Adjustable GOP size
Audio Encoding Format (Codec) MPEG-4 AAC-LC/HEv1/HEv2 Audio Sample Frequency 32 kHz
Audio Bit Rates Up to 576 Kbps (AAC-LC)
Up to 288 Kbps (AAC-HEv1)
Up to 144 Kbps (AAC-HEv2)
Video Compositing Yes, fixed formats including PIP, PBP, quadrant Scaling Yes Recording Recording File Format .mp4 Filename Customizable prefix (optional) Timestamp Automatic in filename Recording Programmability Start date and time
Maximum file length
Recording Locations Shared network drive or NAS
Local USB ports for USB flash drive and external hard drive5
Network Network Connector 2x RJ45 with status LED indicators
1x control and stream
1x stream only
Network Standard 100/1,000 base-T Ethernet
Unicast, multi-unicast, multicast
Command and Control HTTPS over TCP
Streaming Protocols RTSP (TCP), RTCP & RTP (UDP) - all required
RTP/RTCP (both required) over UDP
MPEG2.TS over UDP
IP Addressing IPv4 support
DHCP (default)/static IP address support
Encoding MPEG-4, H.264 Protocol RTCP, RTP, RTSP, UDP/MPEG2-TS Aufzeichnung Ja Steuerung API, Steuersoftware, Bedienfeld, RS-232, LAN
HDMI IN 4x Audio IN 3,5 mm Miniklinke (analog) 5 x, HDMI embedded (digital) 4 x USB IN 3x
HDMI OUT 4x Displayport OUT 1x Audio OUT 3,5 mm Miniklinke (analog) 1 x, HDMI embedded (digital) 4 x Ethernet OUT 2x
