MSD-7202UHD-TB

4K@60 and HDCP 2.2 supported Presentation Switcher
(Built-in scan converter)

Mehr Ansichten

IDK
MSD-7202UHD-TB
4K@60 and HDCP 2.2 supported Presentation Switcher
(Built-in scan converter)
Bitte loggen Sie sich ein um Ihren Preis zu sehen
Beschreibung

Details

The MSD-7202UHDTB is IDK’s latest digital multi switcher, heralding in a new era of true 4K digital multi-format switchers. With support for 9 inputs (7 digital HDMI and 2 universal analog) and 2 digital HDMI outputs, all at 4K 4:4:4 60Hz the MSD-7204UHDTB is a cut above the competition.

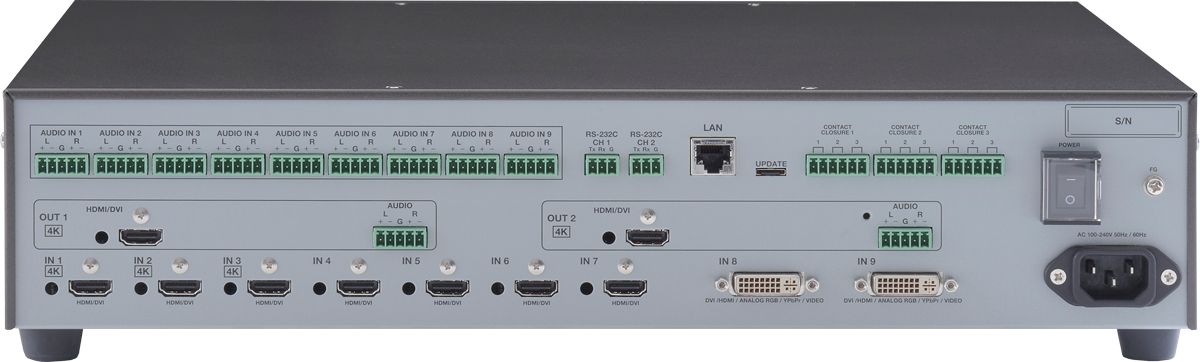

In addition to the digital and analog video connectors, the MSD-7202UHDTB also has 9 5-pin Pheonix connector terminal blocks for analog audio inputs as well as 2 analog audio outputs. For external control, the MSD has 2 RS-232C 3 pin terminal blocks, and 9 contact closures for devices such as blinds or projector screens.

Zusatzinformation

Zusatzinformation

Allgemein

Artikelnummer 8673-0070-01
Administrator IDK
Lieferzeit 2-5 Tage

Eigenschaften

Eigenschaften

Video:

  • Up to 4K@60 (4:4:4)
  • HDCP 1.4/2.2
  • I/P conversion
  • Scan Converter
  • Aspect ratio control
  • Seamless switching
  • A/D conversion output
  • Anti-snow

Audio:

  • A/D, D/A conversion
  • Volume adjustment
  • Lip sync









HDCP compliant Ja
4K fähig Ja
Steuerung Bedienfeld, RS-232, IP, Web Interface, Schaltkontakte

Inputs

CV IN 2x
YC IN 2x
YUV/YPbPr IN 2x
VGA IN 2x
DVI IN 2x
HDMI IN 7x
DVI-U IN 2x

Outputs

HDMI OUT 2x
Downloads

Downloads

Datenblattpdfs//msd-7201_7202_7203_7204_vd-eu-gmbh.pdf (819.02 KB )
LV-Textdocv//lv_idk_msd-7202uhdtb.doc (54.5 KB )
