MSD-7204UHDTB

IDK

MSD-7204UHDTB

4K@60 and HDCP 2.2 supported Presentation Switcher
(Built-in scan converter)

Mehr Ansichten

IDK
MSD-7204UHDTB

4K@60 and HDCP 2.2 supported Presentation Switcher
(Built-in scan converter)

Bitte loggen Sie sich ein um Ihren Preis zu sehen

Lieferzeit: 2-5 Tage

| Auf die Vergleichsliste

Beschreibung

Details

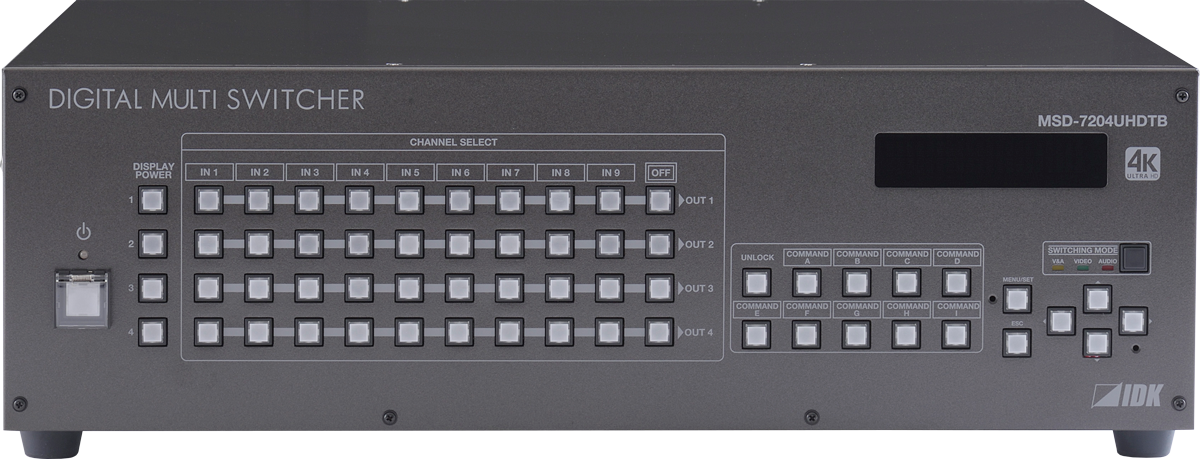

The MSD-7204UHDTB is IDK’s latest digital multi switcher, heralding in a new era of true 4K digital multi-format switchers. With support for 9 inputs (7 digital HDMI and 2 universal analog) and 4 digital HDMI outputs, all at 4K 4:4:4 60Hz the MSD-7204UHDTB is a cut above the competition, and has been recognized as such at ISE 2017, winning Best in Show.

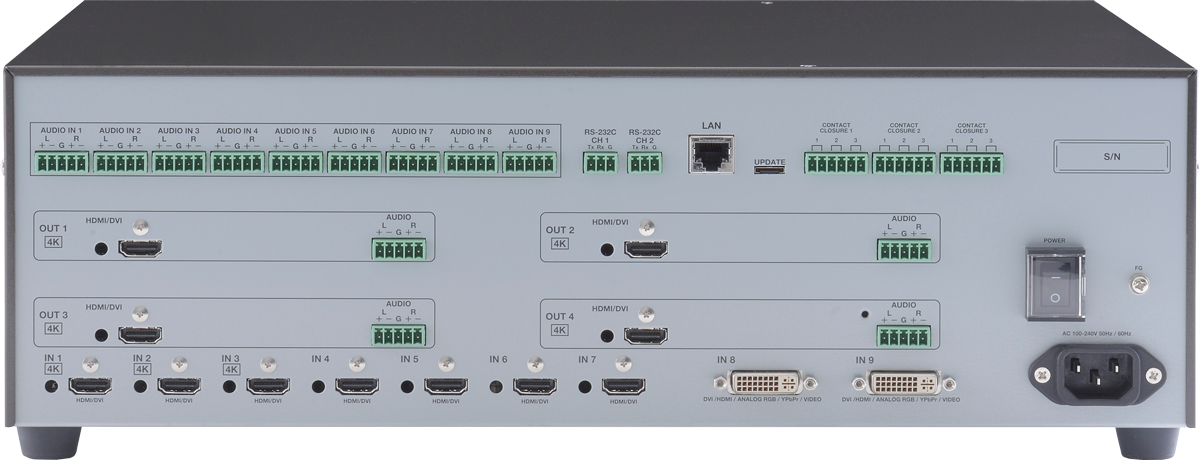

In addition to the digital and analog video connectors, the MSD-7204UHDTB also has 9 5-pin Pheonix connector terminal blocks for analog audio inputs as well as 4 analog audio outputs. For external control, the MSD has 2 RS-232C 3 pin terminal blocks, and 9 contact closures for devices such as blinds or projector screens.

Zusatzinformation

Zusatzinformation

Allgemein

Artikelnummer	8673-0072-01
Administrator	IDK
Lieferzeit	2-5 Tage

Eigenschaften

Eigenschaften	Video: Up to 4K@60 (4:4:4) HDCP 1.4/2.2 I/P conversion Scan Converter Aspect ratio control Seamless switching A/D conversion output Anti-snow Audio: A/D, D/A conversion Volume adjustment Lip sync
HDCP compliant	Ja
4K fähig	Ja
Steuerung	Bedienfeld, RS-232, IP, Web Interface, Schaltkontakte

Inputs

CV IN	2x
YC IN	2x
YUV/YPbPr IN	2x
VGA IN	2x
HDMI IN	7x
DVI-U IN	2x

Outputs

HDMI OUT	4x

Downloads

Downloads

Datenblatt	s//msd-7201_7202_7203_7204_vd-eu-gmbh.pdf (819.02 KB )
LV-Text	v//lv_idk_msd-7204uhdtb.doc (55 KB )
